DIAMOND Replacement Parts Pickup, Car & Truck / HINO / MEGA WHEEL 6 TRUCK / Head Lamp Dominator FC283 LH/ RH 81150-E0F01P, 81110-E0F01P

10-94920L/ 10-94900R

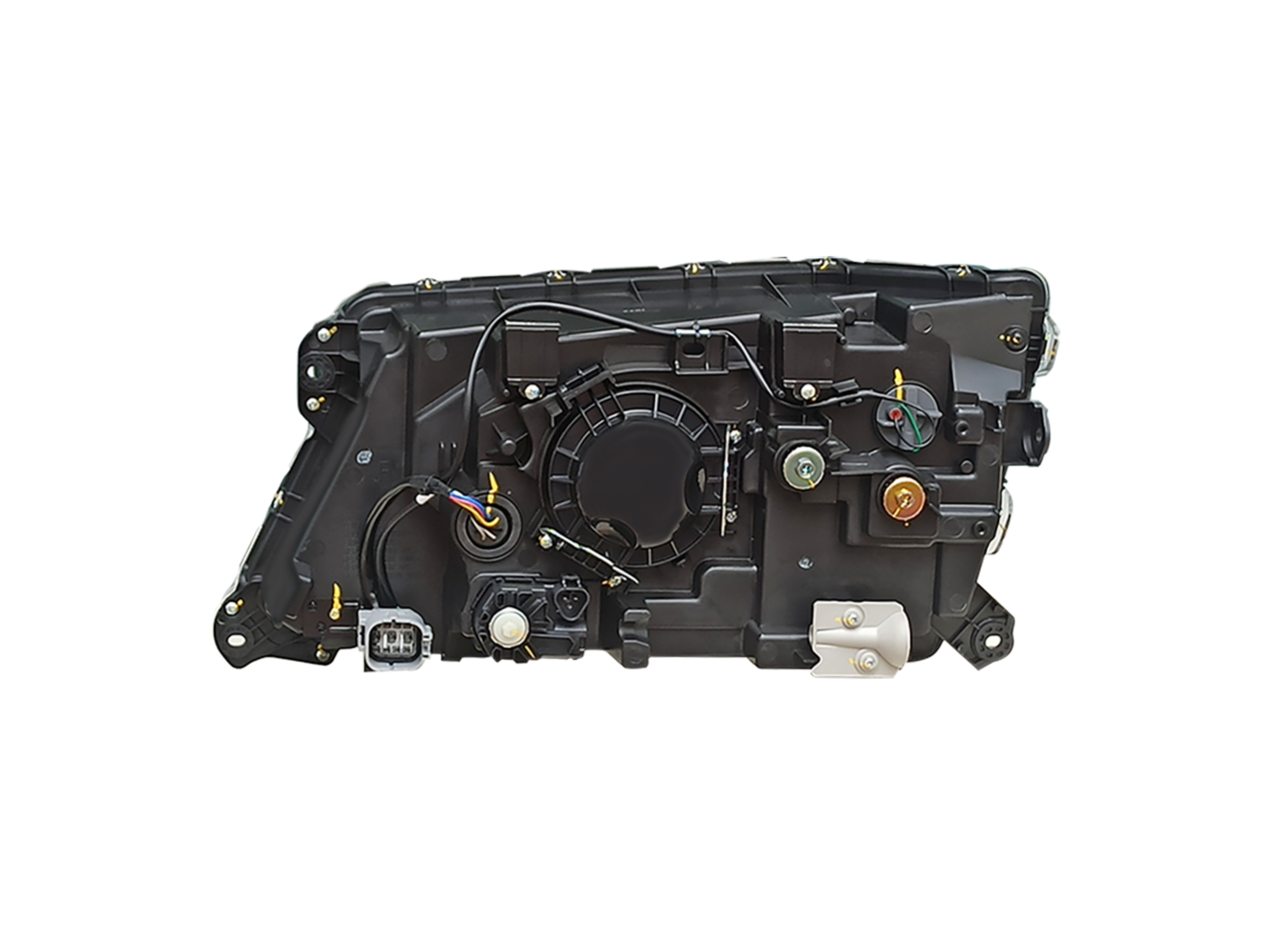

Head Lamp Dominator FC283 LH/ RH 81150-E0F01P, 81110-E0F01P

Function
- Head Lamp High Beam/ Low
- Front Direction Indicator
- LED Daytime Running Light (DRL)
- LED Front Position
- LED Front Fog Lamp
- E-mark Certificated Lighting

Specification
- Input Voltage Range	: 28V (24V)
- Power consumption	: Head Lamp High Beam/ Low H4 75W/ 70W
	: Front Direction Indicator P21W
	: Daytime Running Light/ Front Position LED 0.5W x 21 LEDs
	: Front Fog Lamp LED 3W x 2 LEDs
- Outer Lens	: PC/ Clear Hard Coat
- Lens Front Direction Indicator	: PC/ Amber
- Lens DRL (Daytime Running Light)	: PC/ Clear
- Extension	: PC/ Black
- Reflector Front Direction Indicator	: PBT/ Metalized
- Housing	: PP-T20 Black
- Cover	: PP/ Balck
- Bracket Adjust	: POM/ White
- Screw Adjust Guide	: PP/ Grey
- Grommet	: PA/ Black
- Seal	: EPDM/ Black

Function
- Head Lamp High Beam/ Low
- Front Direction Indicator
- LED Daytime Running Light (DRL)
- LED Front Position
- LED Front Fog Lamp
- E-mark Certificated Lighting

Specification
- Input Voltage Range	: 28V (24V)
- Power consumption	: Head Lamp High Beam/ Low H4 75W/ 70W
	: Front Direction Indicator P21W
	: Daytime Running Light/ Front Position LED 0.5W x 21 LEDs
	: Front Fog Lamp LED 3W x 2 LEDs
- Outer Lens	: PC/ Clear Hard Coat
- Lens Front Direction Indicator	: PC/ Amber
- Lens DRL (Daytime Running Light)	: PC/ Clear
- Extension	: PC/ Black
- Reflector Front Direction Indicator	: PBT/ Metalized
- Housing	: PP-T20 Black
- Cover	: PP/ Balck
- Bracket Adjust	: POM/ White
- Screw Adjust Guide	: PP/ Grey
- Grommet	: PA/ Black
- Seal	: EPDM/ Black
